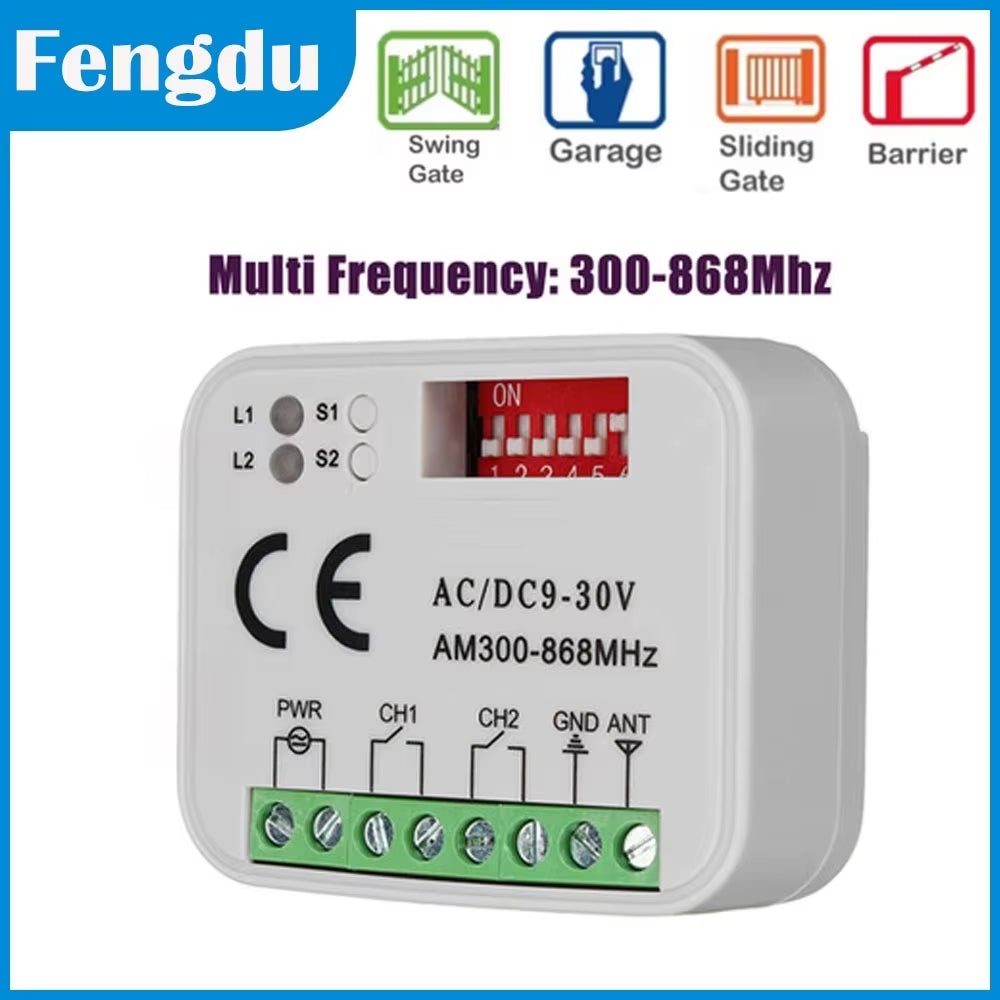

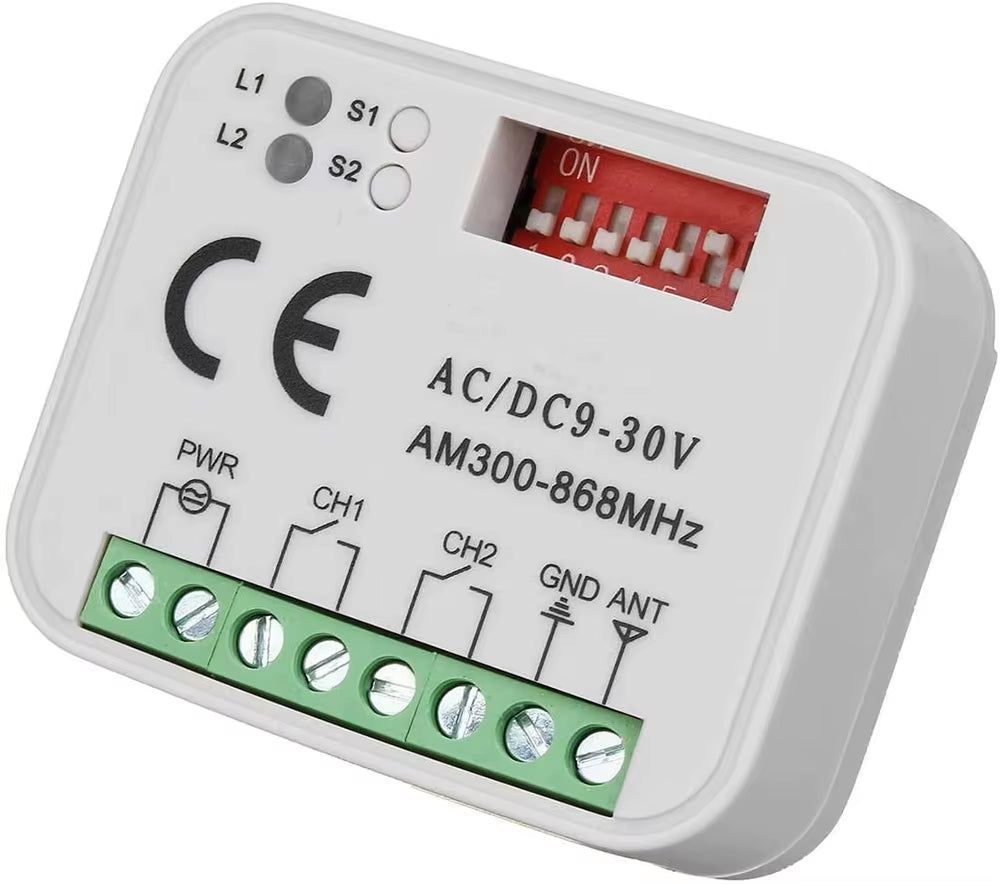

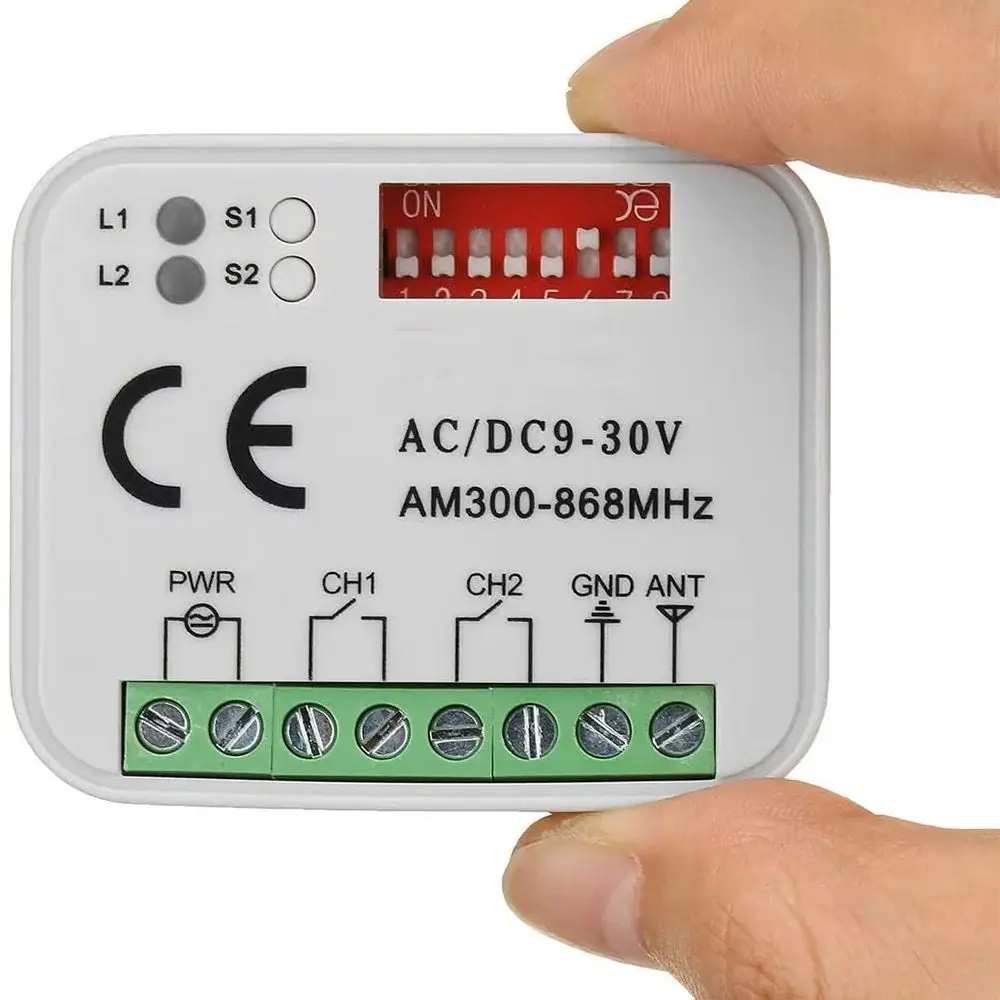

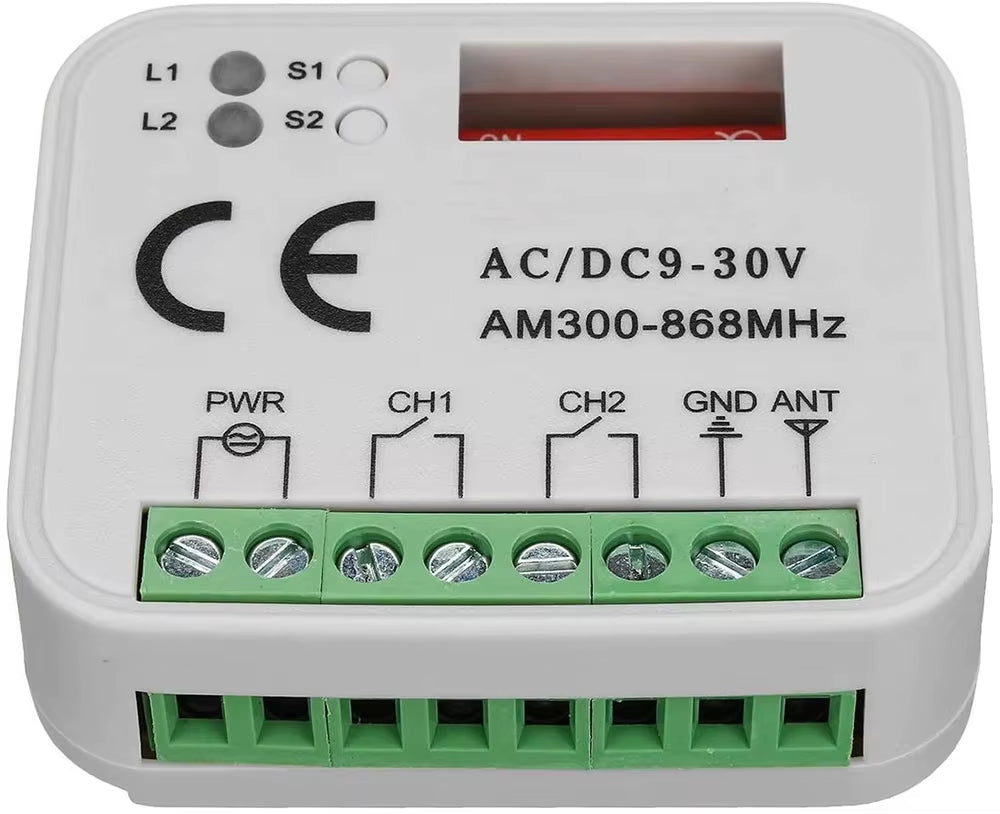

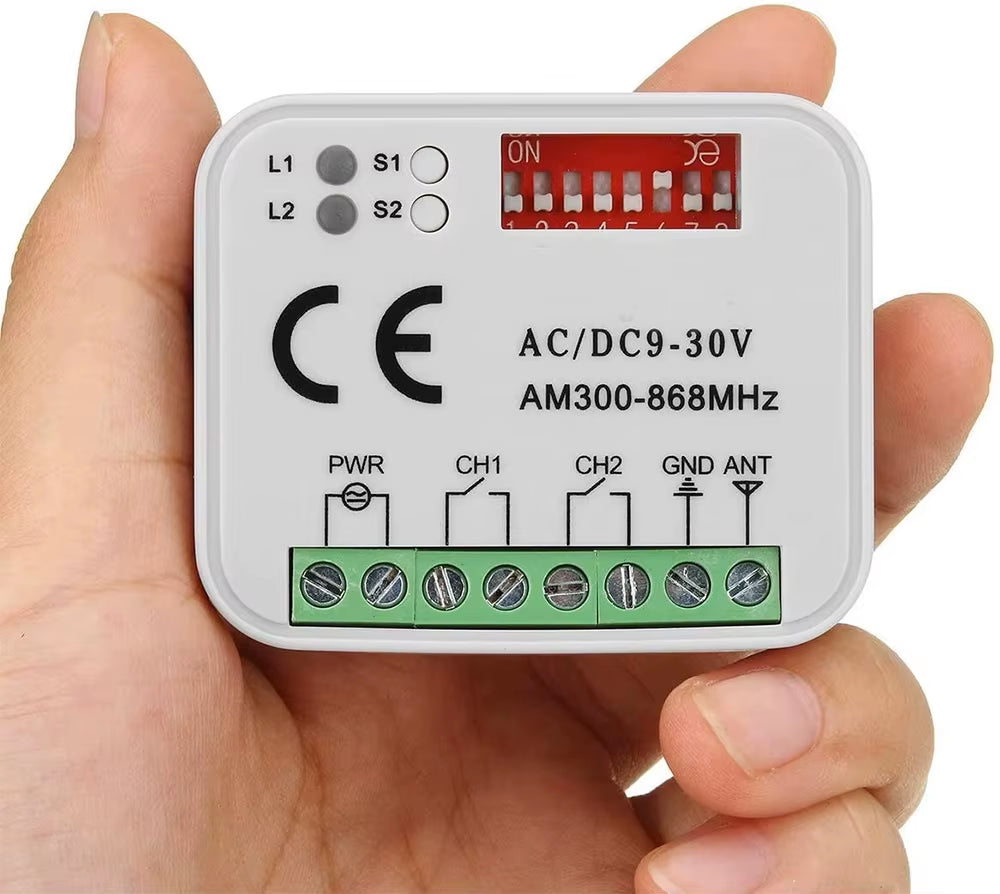

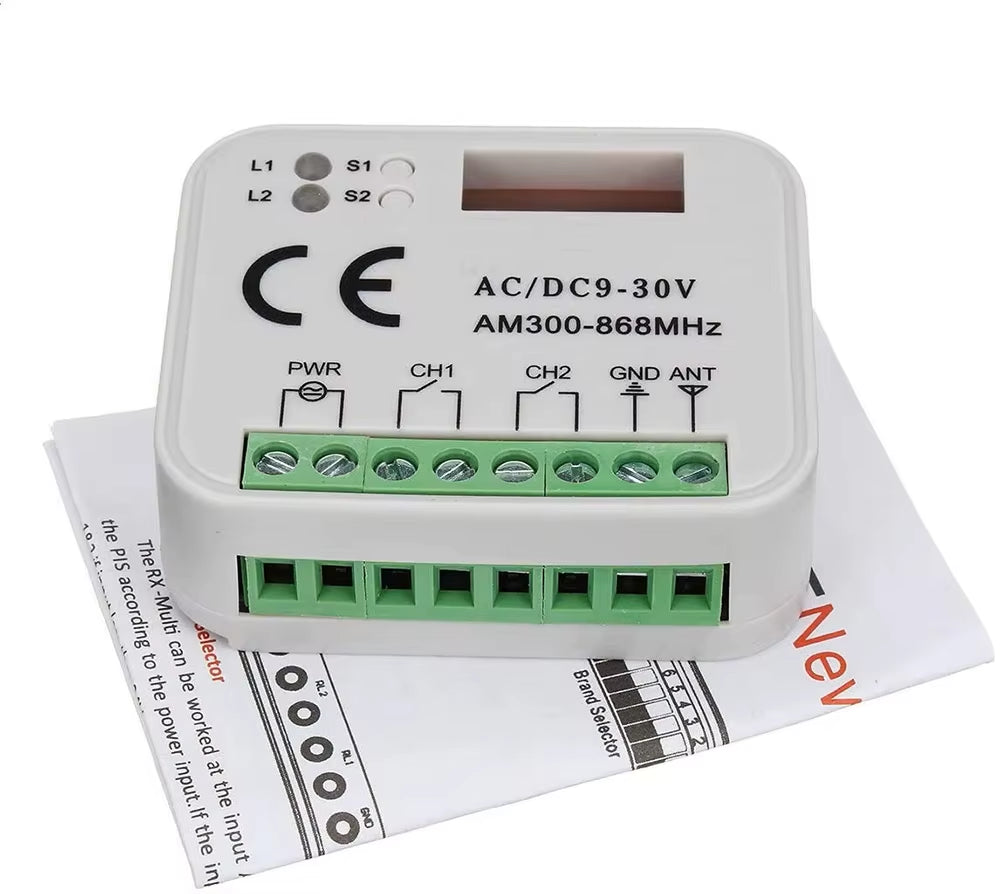

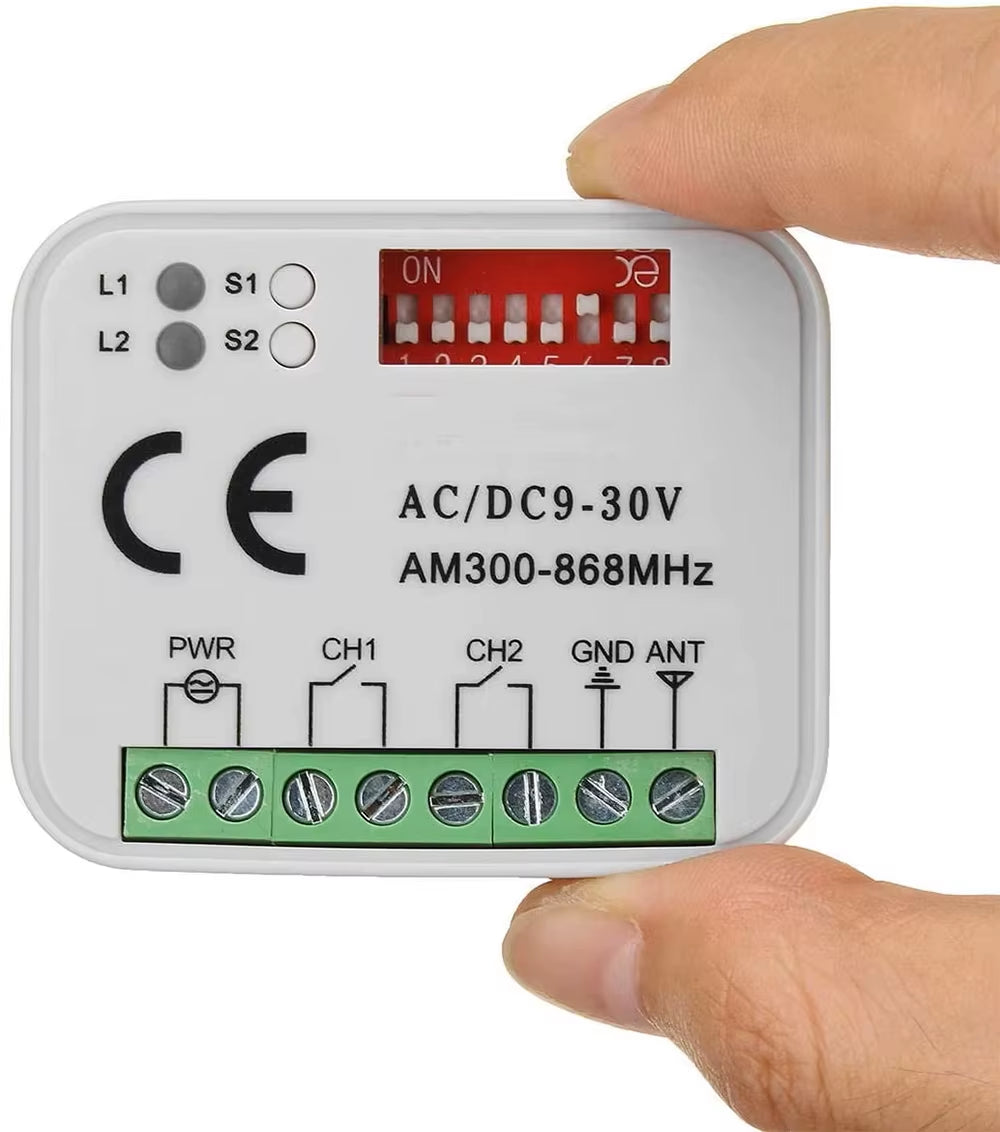

Garage Controller Remote Control Receiver 2 CH Controller Switch for 433 868 Mhz Transmitter Frequency 300-900Mhz

Specifications:

1)Name: Multifrequency receiver

2)Operating Voltage: 9V-30V

3)Channel: 2.

4)Frequency: 300MHz - 900MHz.

5) Distance: 30-50 meters.

6) Very mini size: 5.5cm*4.5cm*1.0cm.

7) One receiver can work with 400 codes.

8) It don’t interference other remotes and receivers.

9) Brand selector: With 8 dip switches user can make different combination for different remote brands.

10)Code: Rolling and Fixed code & Learning code.

11)Uses: Receiver is designed to control any gate automation system, burglar alarm system, electric doors, windows, lifting equipment, gateways, lifting devices. This is an easy to use, good looking, low power consumption and is easy to connect to your existing system.

12) Power Input Selector: This receiver can work at AC/DC 9V~30V. However, it’s better to change the PIS according to the power input. If the input is great than 24V, shorten pin 2&3; shorten 1&2 if input less than 24V.

Receiver Features

Replacing old garage control systems, or for adding more remotes to control garage doors

Universal Multi frequency 300-868mhz garage gate door receiver

Working frequency: 300-900MHz(Rolling code & Fixed code)

1 receiver can store 200pcs of remote control

300MHz

310MHz

315MHz

318MHz

390MHz

433.4MHz

433MHz

433.92MHz

868MHz

868.3MHz

868.8MHz

Can identify ALL Fixed code (2262, 2260, 2264, 5326, M1E, M5E and so on). All Learning code (1527, 2240, 6P20B, 6P20D and so on), Rolling code (HCS301, HCS300,HCS200, HCS201, HCS100, HCS101),
